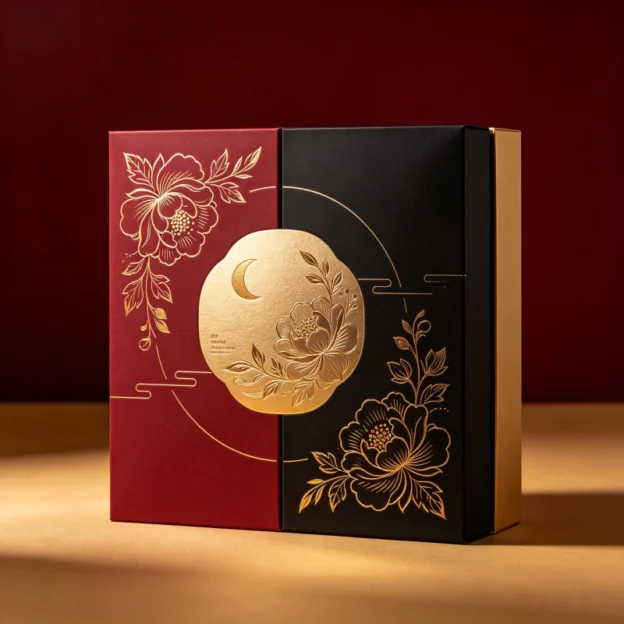

Matte PET Film

Our matte PET film, also referred to as matte polyester film, is a biaxially oriented polyester material manufactured with special masterbatch formulas via sophisticated production processes. We supply diversified matte surface options including low, medium, high matte grades as well as versions tailored for halftone printing, to satisfy differentiated aesthetic and processing demands from global clients. Supported by mature manufacturing technology and rich industry experience, we deliver stable, customized matte PET film solutions for a wide range of industrial sectors.

Thanks to excellent anti-glare and anti-reflection features, this film is widely adopted for electronic display screen protection, effectively cutting screen reflection, improving content readability and resisting fingerprint stains. It is highly favored in high-end packaging fields for its delicate frosted texture, which endows packaged goods with elegant visual appeal while providing reliable surface protection.

The material boasts outstanding printability for labels, hang tags and decorative applications, ensuring clear presentation of texts and patterns on non-reflective surfaces. Besides conventional transparent matte types, matte white PET film has gained growing popularity for its minimalist modern texture, bringing premium visual finishing to flexible packaging, printed materials and various finished consumer products.



Test Item Measurement Unit Representative Parameter Inspection Standard
Film Nominal Thickness μm 12 DIN 53370
Ultimate Tensile Strength (Machine Direction / Transverse Direction) MPa 230/240 ASTM D 882
Percentage Elongation at Rupture (MD/TD) % 140/130 ASTM D 882
Tensile Elastic Modulus (MD/TD) MPa 4200/4400 ASTM D 882

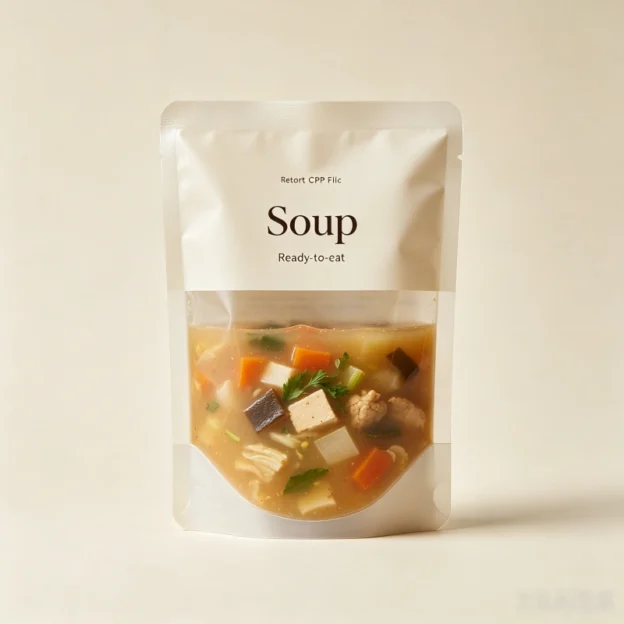

Retort CPP Film

Our retortable CPP (RCPP) cast polypropylene film is a high-performance packaging material specially developed for high-temperature steam sterilization scenarios. We supply two mainstream product grades: semi-retort type resistant up to 120°C and high-temperature retort grade that can withstand extreme temperatures as high as 135°C to meet diverse sterilization process demands.

This series of films maintains stable sealing strength and excellent dimensional stability throughout both heating and cooling cycles of retort treatment. Usually applied as the inner heat-sealing layer of composite structures, it can be laminated with PET, BOPA nylon or aluminum foil. Widely adopted structures include PET/AL/RCPP, PET/NY/RCPP and PET/NY/AL/RCPP, ideal for ready meals, soups, sauces, pet food and various goods requiring long shelf-life storage. We also provide regular PET CPP films for conventional hot filling and room-temperature packaging without high-temperature sterilization needs.

Beyond food packaging fields, our RCPP material is well-suited for medical flexible packaging requiring sterilization, such as sealed pouches for surgical instruments, diagnostic kits and other medical devices that undergo steam or hot water disinfection processes.

Manufactured in Qingdao under rigorous production management, our films feature full batch traceability and can provide official food-contact safety certificates upon request. We deliver stable consistent quality across different batches, offer quick sample support and detailed technical specifications, with our packaging materials exported to numerous global regions to serve clients worldwide.



Property Unit Typical values Test methods
Thickness μm 60 GB/T 6672-2001
Tensile strength (MD) MPa 50 GB/T 13022-1991
Tensile strength (TD) MPa 35 GB/T 13022-1991
Elastic Modulus (MD) MPa 3800 GB/T 16958-2008
Elastic Modulus (TD) MPa 3800 GB/T 16958-2008
Elongation at break (MD) % 470 GB/T 13022-1991
Elongation at break (TD) % 550 GB/T 13022-1991
Thermal Shrinkage (MD) % 3.5 GB/T 16958-2008 (150°C, 30min)
Thermal Shrinkage (TD) % 0 GB/T 16958-2008 (150°C, 30min)
Friction coefficient — 0.35 GB/T 10006-1998
Haze % 3.5 GB/T 2410
Glossiness % 120 GB/T 8807
Wetting tension mN/M 46 GB/T 14216

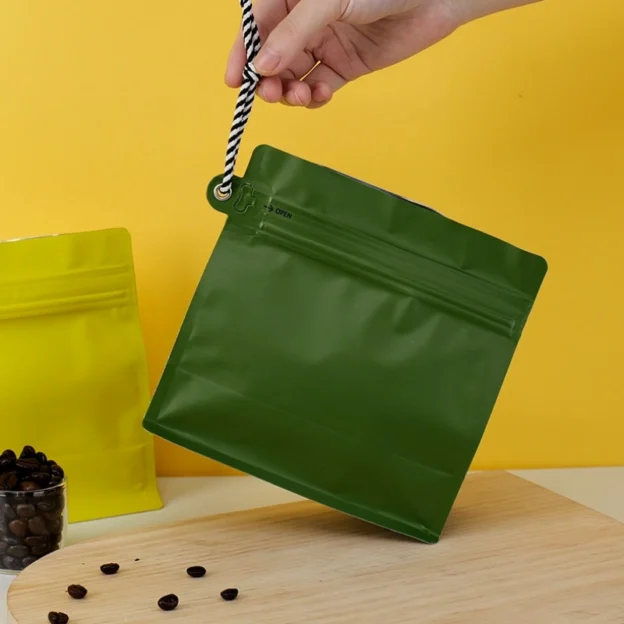

Metallized CPP Film

We are a professional Chinese manufacturer specializing in premium metallized CPP (cast polypropylene) film, delivering reliable and cost-effective vacuum metallized packaging film solutions for global buyers.

Our durable high-performance metallized CPP film is fabricated from premium polypropylene resin via melt extrusion and cast film processes, followed by precise vacuum aluminum coating to form the finished material. Serving as an economical alternative to traditional aluminum foil, this corona-treated single-side heat-sealable film comes in standard thickness ranging from 20 to 30 microns, and is frequently laminated with BOPP or polyester base films for composite packaging structures.

Featuring exceptional oxygen and moisture barrier performance, VM CPP film effectively blocks vapor and gas permeation, greatly extending the shelf life of packaged food goods. Its outstanding metallic gloss and high light reflectivity elevate packaging visual appeal, helping products stand out prominently on retail shelves.

Beyond food packaging, this versatile metallized CPP material offers reliable protection against moisture, dust and other environmental contaminants, making it widely applicable for the packaging of electronic components, pharmaceutical supplies and various industrial finished products to safeguard items during storage and long-distance transportation.



Properties Unit Standard Value Test Value Test Method
Thickness μm 20 20 GB/T 6672
AL Thickness Ω/□ ≤ 2.5 1.78 GB/T 15717
Adhesion of AL Layer N/15mm ≥ 2 5 EAA
Initial heat sealing temperature (3N) ℃ 107 – 108 107.0 BB/T 0030-2019
Tensile Strength (MD/TD) MPa ≥ 35 / ≥ 25 58.9 / 51.8 GB/T 1040.3
Elongation at Break (MD/TD) % ≥ 280 / ≥ 380 370 / 460 GB/T 1040.3
MVTR (38°C, 90% RH) g/(m²·day) ≤ 2.0 1.37 ASTM F-1249
OTR (38°C, 90% RH) cc/(m²·day) 10 – 20 15.00 ASTM D-3985

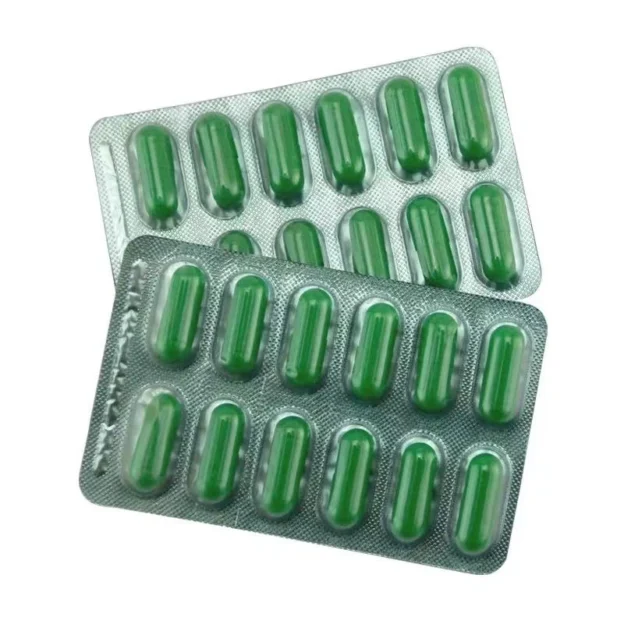

Metallized BOPP Film

Metallized BOPP film is biaxially oriented polypropylene base film deposited with an ultra-thin metallic layer (aluminum is the most common material) on one side to enhance comprehensive material performance. According to different packaging usage demands, the reverse side of the film can be customized with heat-sealable function for flexible composite packaging processing.

This packaging material features brilliant metallic luster, high surface gloss, outstanding tear resistance, flame retardancy, wear resistance, excellent printing adaptability and waterproof performance. As a mainstream outer layer material for composite packaging films, it is widely applied in the packaging fields of food, tobacco, electronic components, daily chemical supplies and medical consumables.

Thanks to its superior barrier performance, metallized BOPP film can effectively isolate oxygen and water vapor to extend product shelf life and preserve original freshness. Its high gloss and light reflection characteristic greatly upgrade the visual attractiveness of packaged goods. Reliable mechanical strength and heat resistance enable the film to cope with diverse packaging processes and complex storage and transportation environments.

Our metallized BOPP products strictly comply with food safety standards and have obtained authoritative certifications including FDA, RoHS, REACH and SGS. We are able to supply relevant certification documents and material safety specification reports to global clients upon formal application, delivering stable, high-performance customized film packaging solutions for worldwide packaging enterprises.



Property Unit Typical values Test methods
Thickness μm 15, 18, 20 GB/T 6672-2001
Tensile strength (MD/TD) MPa 142 / 255 GB/T 1040.3-2006
Elongation at break (MD/TD) % 173 / 50 GB/T 1040.3-2006
Thickness of Aluminium Ω/□ 1.32 GB/T 15717—1995
WVTR g/(m²·24h) 0.5 GB/T 26253
OTR cm³/(m²·24h) 1.0 GB/T 19789

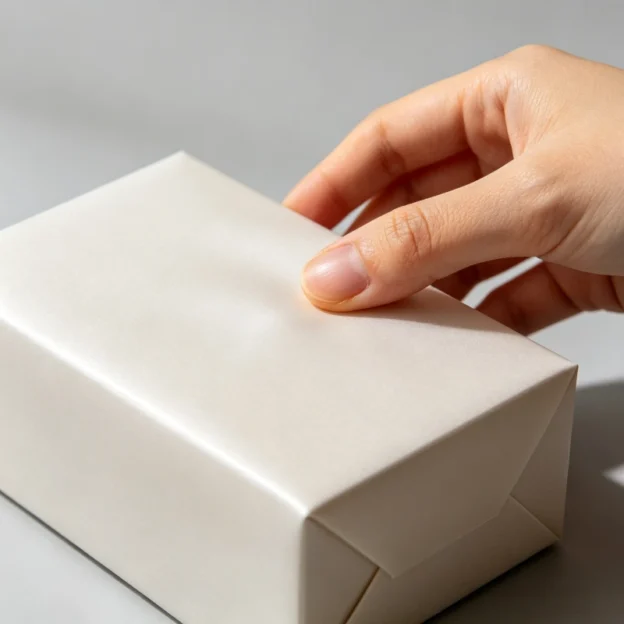

Soft Touch BOPP Film

Soft Touch BOPP film is a specialized BOPP laminating material coated with a unique soft-touch surface layer. This special coating delivers an ultra-smooth, velvety tactile sensation similar to peach skin or fine suede, while the BOPP substrate retains polypropylene’s outstanding mechanical strength, excellent moisture barrier performance and recyclable features.

Different from traditional matte films, our soft touch BOPP film brings a premium tactile experience and provides reliable protection for dark, high-coverage printed designs. Its low-gloss and high-haze surface makes printed patterns look elegant and high-end under retail lighting, avoiding dazzling excessive gloss. Meanwhile, the material features stable stiffness and dimensional accuracy, perfectly fitting high-speed lamination and subsequent converting production.

  • Great scratch and friction resistance to keep packaging surfaces intact during handling and logistics transportation
  • Superior color retention effect for deep black, solid spot colors and gradient background designs
  • Fingerprint and light stain resistance, keeping packaging tidy and attractive on retail shelves

We provide both water-based wet lamination type and thermal soft touch BOPP film, which can be seamlessly applied to existing laminating production lines. Compatible with offset, gravure, flexo and digital printing, it supports hot stamping, spot UV, embossing and debossing post-processing without damaging its delicate soft texture. We offer customized width, thickness and roll specifications, with free samples and professional technical support for your packaging R&D verification.



Properties Test Method Unit Value
Thickness GB/T6672 μm 20 – 25
Density GB/T6343 g/cm³ 0.905
Haze GB/T2410 % 1.5
Gloss GB/T8007 % 79
Coefficient of friction (A/A) GB/T10006 — 0.35
Tensile strength (MD) GB/T1040.3 MPa 105
Tensile strength (TD) GB/T1040.3 MPa 200
Elongation at break (MD) GB/T1040.3 % 145
Elongation at break (TD) GB/T1040.3 % 50

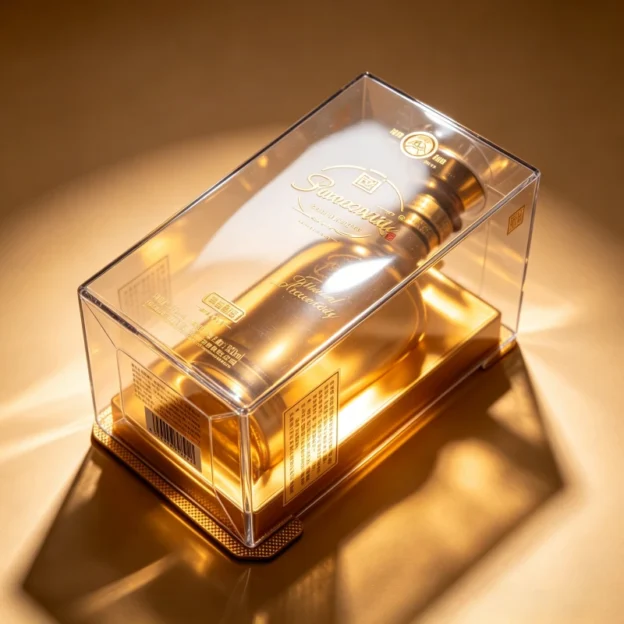

Acrylic Coated BOPP Film

If you are searching for high-performance packaging material integrating high gloss, anti-blocking and heat-sealing properties, our acrylic coated BOPP film is well-designed for high-end packaging scenarios. Based on transparent shrinkable BOPP substrate with double-sided acrylic coating, this packaging film can deliver outstanding and stable application reliability for your premium packaging demands.

You can gain multiple advantages from this film, including excellent optical performance, strong heat-sealing strength and wide temperature adaptability. It features excellent aroma retention and gas barrier performance to keep your packaged goods fresh. The anti-blocking surface ensures smooth high-speed operation on packaging machines. Besides, it is compatible with water-based printing inks to support your eco-friendly printing requirements.

This BOPP film is widely applied to the outer packaging of cigarettes, cosmetics and pharmaceutical products. It can upgrade product display effect while protecting inner contents against moisture, oxygen and external contamination, perfectly matching brands pursuing both attractive appearance and practical packaging functions. Adopting sophisticated production technology and rigorous quality control systems, our factory supplies standard and customized coated BOPP films that comply with international specifications, serving as your dependable partner for high-end packaging material sourcing.



Acrylic Coated BOPP Film Technical Specification

Item Specification & Description
Material Structure Biaxially Oriented Polypropylene (BOPP) base film with single or double side acrylic coating treatment
Available Thickness 12μm ~ 50μm, regular stock specifications: 15μm, 18μm, 20μm, 25μm, 30μm, 38μm
Width Range 300mm – 2200mm, customized slitting width available; standard 3-inch / 6-inch paper core
Surface Tension Treated acrylic coated side ≥ 38 ~ 42 mN/m, excellent for printing, laminating, vacuum metallizing
Optical Property High gloss transparent type or matte type optional; good clarity, low haze, stable optical performance
Friction Coefficient Controllable dynamic COF, ensures stable high-speed running during printing, slitting and coating processes
Heat Shrinkage (MD/TD) Low thermal shrinkage rate, outstanding dimensional stability to avoid wrinkling and deformation in high-temperature processing
Key Advantages Great ink & adhesive adhesion, anti-static optional, solvent resistance, ideal for UV, water-based and solvent-based printing inks
Main Applications Flexible packaging printing, vacuum metallization substrate, adhesive tape base, label & sticker, hot stamping, holographic film base material

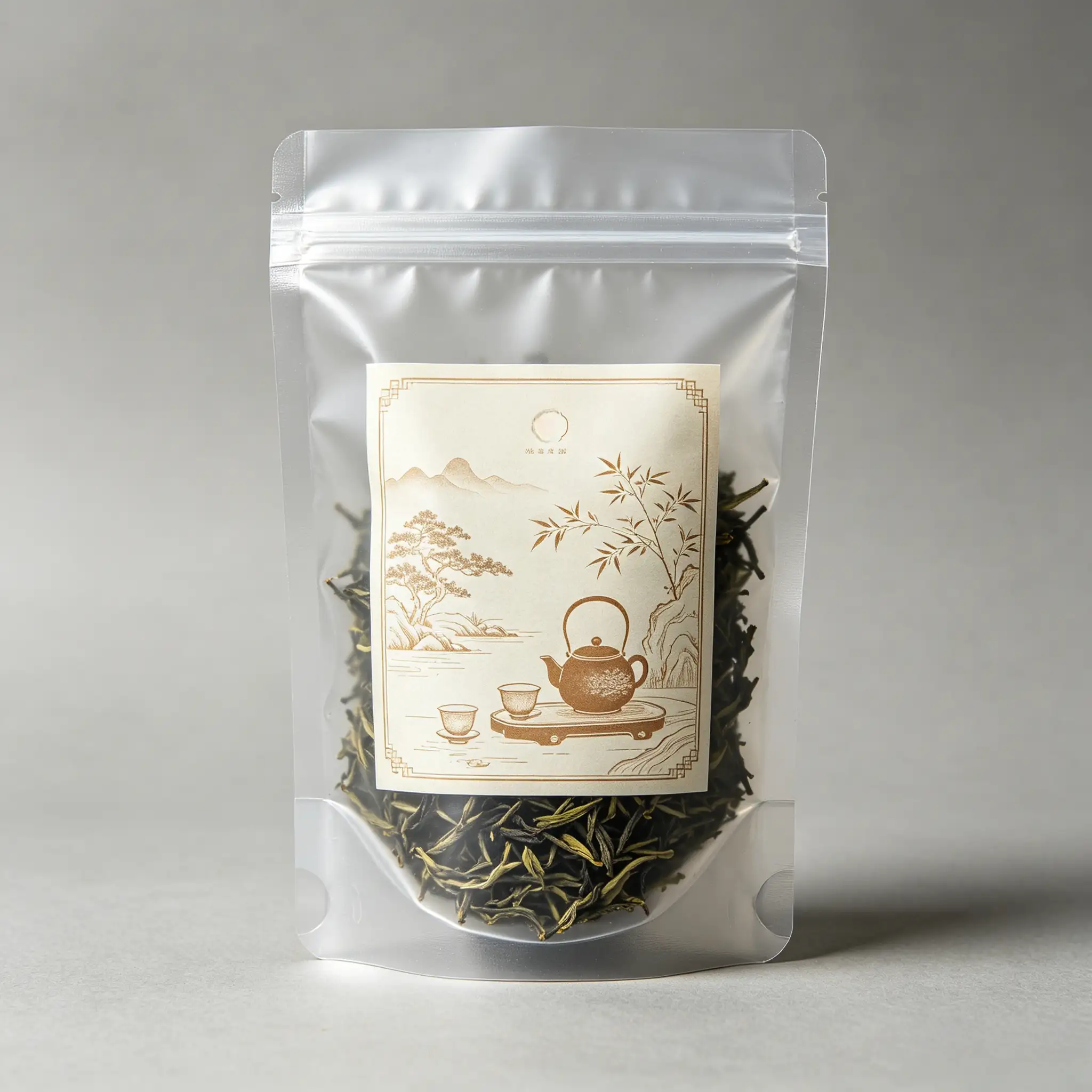

Heat Sealable BOPP Film

Heat sealable BOPP film is manufactured from biaxially oriented polypropylene, a widely used versatile packaging material famous for outstanding thermal sealing performance. When heated, the material forms tight, stable sealing edges to fully guarantee the integrity of packaged goods during storage, transportation and daily use.

Our high-performance heat sealable plastic film features excellent hot-slip property, enabling packaging machines to run at maximum production speed under high-temperature operating conditions. It balances high production efficiency with stable sealing quality, effectively avoiding sealing failure, material sticking and other common processing defects in high-speed packaging lines. Though the raw BOPP film has low surface energy, corona surface treatment greatly improves its printing adaptability. Clear, delicate overprinting patterns can be realized on the film surface, making it an ideal surface layer material for composite packaging films.

We supply both single-sided and double-sided heat sealable BOPP films. Single-sided sealable types fit conventional vertical and horizontal packaging bags, featuring high sealing strength, high gloss and excellent transparency. With good barrier and tear-resistant performance, it complies with food safety standards, widely applied to disposable tableware, dried seafood, vacuum grains, herbal ingredients and mask packaging. Double-sided heat-sealable versions suit special-shaped packaging such as cube and pillow-style bags, supporting post-processing including laser marking and glitter finishing for diverse packaging design demands. Customized specifications and food-grade, high-clarity grades are available to match your diverse packaging requirements.



Property Category Test Item Direction Test Method Unit Typical Value
Mechanical Properties Tensile Strength MD ASTM D882 MPa ≥ 135
Tensile Strength TD ASTM D882 MPa ≥ 240
Elongation at Break MD ASTM D882 % ≤ 200
Elongation at Break TD ASTM D882 % ≤ 65
Surface & Physical Properties Coefficient of Friction — ASTM D1894 dimensionless ≤ 0.6
Density — ASTM D792 g/cm³ 0.91
Gloss — ASTM D2457 % ≥ 90
Haze — ASTM D1003 % ≤ 2.0
Thermal Properties Heat Shrinkage (120°C/2min) MD ASTM D1204 % ≤ 3.5
Heat Shrinkage (120°C/2min) TD ASTM D1204 % ≤ 2.0
Heat Seal Initiation Range — ASTM F88 °C 115 ~ 140
Heat Seal Strength (at 125°C) — ASTM F89 N/15mm ≥ 2.5
Surface Treatment Wetting Tension (Corona side) — ASTM D2578 dyn/cm ≥ 38

Note: MD = Machine Direction  |  TD = Transverse Direction
Typical values are for reference only, not guaranteed minimums.

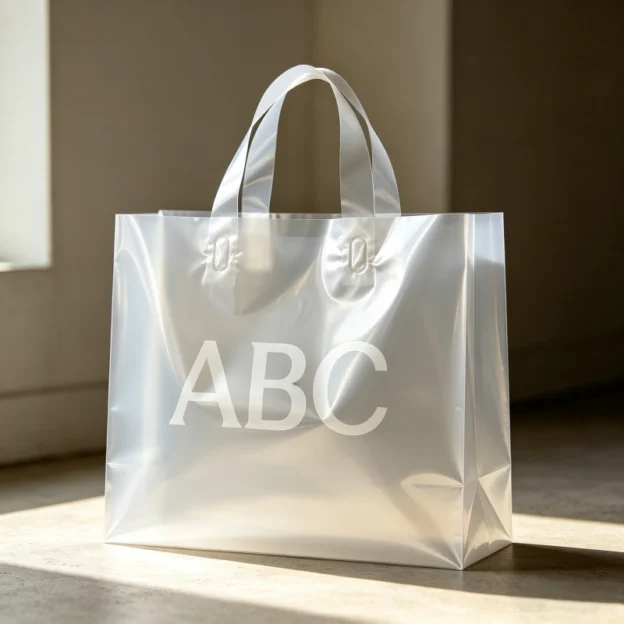

BOPP Adhesive-Free Lamination Film

BOPP adhesive-free thermal laminating film belongs to the new generation of thermal lamination materials. This product integrates functional lamination layers into the base BOPP substrate, enabling direct lamination onto printed paper or plastic films. No pre-coating treatment or inline adhesive coating is required during production, which greatly streamlines the pre-processing steps of traditional film lamination.

Commonly applied to paper-plastic composite processing for gift packaging boxes, book covers and high-grade color cartons, our adhesive-free film removes the oven drying procedure from the whole production flow. Compared with conventional lamination techniques, it cuts overall processing energy consumption by nearly 60%. Meanwhile, the release of hazardous pollutants including formaldehyde and aromatic hydrocarbons is drastically reduced, helping packaging manufacturers fully comply with global increasingly stringent environmental protection laws and emission standards.

Supported by mature independent adhesive-free lamination technology and standardized strict quality control throughout production, our laminating film delivers stable bonding performance, uniform gloss and haze parameters, as well as excellent processing adaptability on mainstream commercial laminating equipment. It optimizes your production workflow, effectively controls comprehensive operating costs, and empowers your business to upgrade toward eco-friendly, high-performance paper-plastic lamination solutions for premium packaging applications.





BOPP Adhesive-Free Lamination Film Technical Specification

Technical Item Detailed Parameter
Raw Material Biaxially Oriented Polypropylene (BOPP) base film integrated with heat-bondable adhesive-free laminating layer
Available Thickness 13μm ~ 25μm; mainstream conventional specification: 13μm, 14μm
Usable Width & Paper Core Custom width from 300mm to 2000mm, supplied on 3-inch or 6-inch standard paper cores
Gloss & Haze Property Super high glossy finish, typical surface gloss value: 94%, typical haze value: 1.1%
Dynamic Friction Coefficient Formula optimized to guarantee stable feeding, neat stacking during high-speed laminating and die-cutting processes
Heat Sealing Performance Excellent thermal bonding strength for A/A, A/C, C/C composite structures, perfectly fits high-standard paper-plastic packaging lamination
Dimensional Stability Low thermal shrinkage both in machine direction and transverse direction, adaptable to post-press creasing, folding, embossing processing
Max Laminating Running Speed 105 meters per minute for normal printed products; 40 meters per minute for heavy ink & large solid color printing designs



BOPP Tape Film

This BOPP tape base film is professionally developed as the substrate material for pressure-sensitive adhesive tapes. One side of the film is specially optimized to achieve excellent adhesive anchoring performance, while the reverse side undergoes corona surface treatment to guarantee stable ink adhesion, supporting simple line graphics and brand logo printing requirements.

With this well-designed film structure, tape manufacturers can process jumbo mother rolls into high-performance carton sealing tapes and office stationery tapes, ensuring stable and consistent adhesive coating quality throughout production batches. Adopting biaxial stretching forming combined with precise co-extrusion manufacturing technology, the finished film boasts outstanding tensile strength, great impact resistance and reliable dimensional stability, effectively avoiding stretching deformation during high-speed processing and usage.

Strict thickness tolerance control ensures uniform film thickness and flatness across the entire web width. This feature realizes even adhesive coating weight distribution, low noise performance during unwinding, and stable operating effects on automated packaging production lines. Our BOPP tape film is compatible with multiple adhesive systems including water-based acrylic, hot melt and rubber-based pressure-sensitive adhesives to meet diverse application scenarios.

The product applies to transparent, tan and colored carton sealing tapes, printed warning tapes, stationery adhesive tapes as well as custom logo printed specialty tapes. We provide both standard-spec and tailor-made jumbo rolls, which can be customized to match your slitting layout, paper core dimension and outer carton packaging specifications for flexible production arrangement.

BOPP Film – Technical Specifications
Properties Test Methods Unit Typical Data
Mechanical Properties
Tensile Strength (MD) ASTM D882 N/mm² ≥150
Tensile Strength (TD) ASTM D882 N/mm² ≥260
Elongation at break (MD) ASTM D882 % ≤180
Elongation at break (TD) ASTM D882 % ≤65
Physical Properties
Coefficient of friction ASTM D1894 — ≤0.5
Density ASTM D792 g/cm³ 0.91
Gloss ASTM D2457 % ≥90
Haze ASTM D1003 % ≤2.0
Thermal Properties
Heat Shrinkage (120℃/2min) MD ASTM D1204 % ≤3.5
Heat Shrinkage (120℃/2min) TD ASTM D1204 % ≤2.0
Other Properties
Surface tension (Corona Side) ASTM D2578 Dyne ≥38
Note: Typical data for reference only. Testing environment: 23°C / 50% RH.
