Core Features
High-clarity BOPP base film for adhesive coating, slitting and printing of packaging tapes.
Product Overview
Biaxially oriented polypropylene film serving as substrate for pressure-sensitive tapes for carton sealing and daily packaging.
Visual & Mechanical Benefits
Boasts high gloss clarity and great tensile strength with stable shrinkage to guarantee reliable carton sealing.
Processing & Eco Performance
One side for adhesive coating while the corona-treated side supports multi-color printing; jumbo rolls enable efficient converting into finished tapes.
This BOPP tape base film is professionally developed as the substrate material for pressure-sensitive adhesive tapes. One side of the film is specially optimized to achieve excellent adhesive anchoring performance, while the reverse side undergoes corona surface treatment to guarantee stable ink adhesion, supporting simple line graphics and brand logo printing requirements.
With this well-designed film structure, tape manufacturers can process jumbo mother rolls into high-performance carton sealing tapes and office stationery tapes, ensuring stable and consistent adhesive coating quality throughout production batches. Adopting biaxial stretching forming combined with precise co-extrusion manufacturing technology, the finished film boasts outstanding tensile strength, great impact resistance and reliable dimensional stability, effectively avoiding stretching deformation during high-speed processing and usage.
Strict thickness tolerance control ensures uniform film thickness and flatness across the entire web width. This feature realizes even adhesive coating weight distribution, low noise performance during unwinding, and stable operating effects on automated packaging production lines. Our BOPP tape film is compatible with multiple adhesive systems including water-based acrylic, hot melt and rubber-based pressure-sensitive adhesives to meet diverse application scenarios.

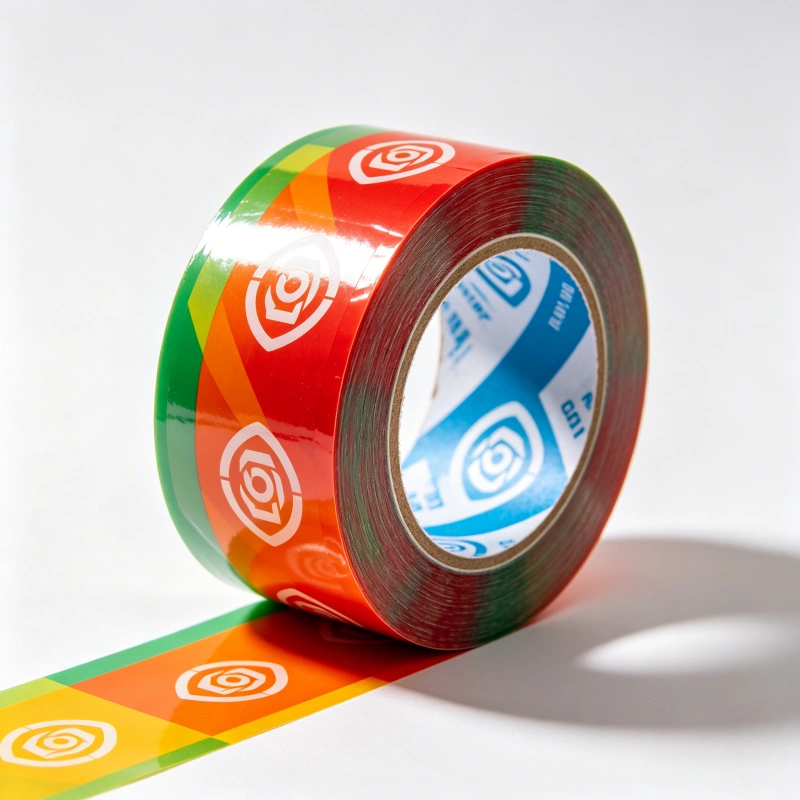

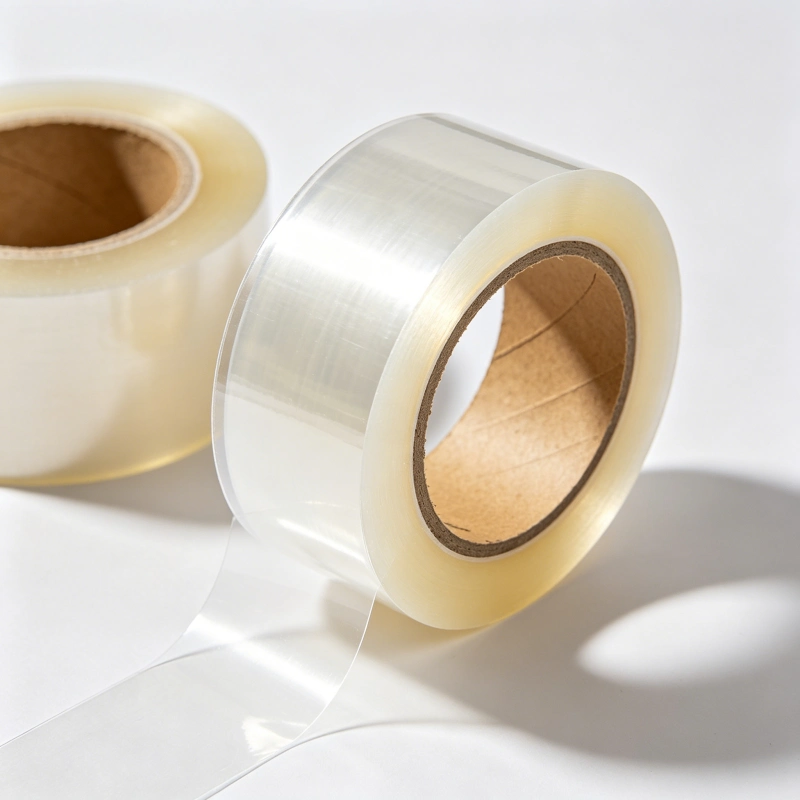

The product applies to transparent, tan and colored carton sealing tapes, printed warning tapes, stationery adhesive tapes as well as custom logo printed specialty tapes. We provide both standard-spec and tailor-made jumbo rolls, which can be customized to match your slitting layout, paper core dimension and outer carton packaging specifications for flexible production arrangement.
BOPP Film – Technical Specifications
Properties
Test Methods
Unit
Typical Data
Mechanical Properties
Tensile Strength (MD)
ASTM D882
N/mm²
≥150
Tensile Strength (TD)
ASTM D882
N/mm²
≥260
Elongation at break (MD)
ASTM D882
%
≤180
Elongation at break (TD)
ASTM D882
%
≤65
Physical Properties
Coefficient of friction
ASTM D1894
—
≤0.5
Density
ASTM D792
g/cm³
0.91
Gloss
ASTM D2457
%
≥90
Haze
ASTM D1003
%
≤2.0
Thermal Properties
Heat Shrinkage (120℃/2min) MD
ASTM D1204
%
≤3.5
Heat Shrinkage (120℃/2min) TD
ASTM D1204
%
≤2.0
Other Properties
Surface tension (Corona Side)
ASTM D2578
Dyne
≥38
Note: Typical data for reference only. Testing environment: 23°C / 50% RH.
