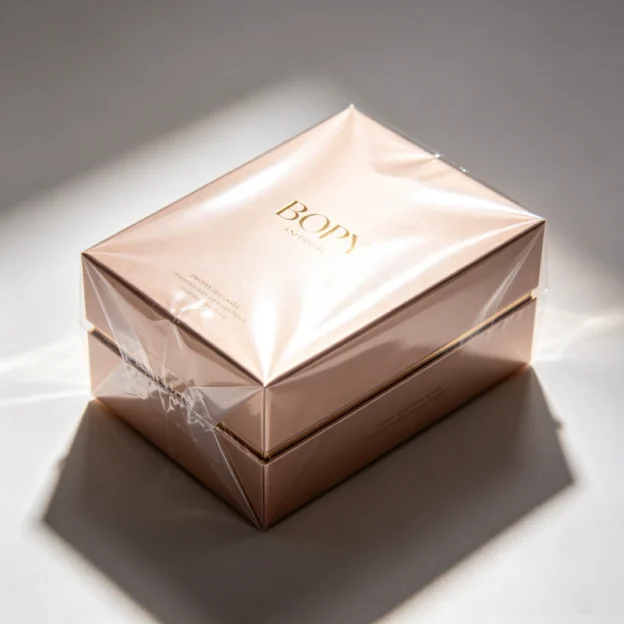

BOPP Anti Scratch Film

Anti-fog BOPP film refers to biaxially oriented polypropylene (BOPP) film that is modified by incorporating anti-fog additives either within the film core layer or on its surface. Such additives reduce the surface tension of condensed water vapor, enabling moisture to spread out and form a continuous transparent coating, rather than forming tiny water droplets that scatter light and cause blurriness.

With excellent transparency, the packaging allows end consumers to clearly check the freshness status of packaged food products at any time.

We supply anti-fog BOPP films with standard thickness ranging from 20μm to 35μm, and custom thickness specifications can be provided upon request. Our mainstream film structures are listed as below:

  • AF/AF: Double-sided anti-fog property with double-sided heat-sealable performance
  • AF/CO: One side with anti-fog & heat-sealable function; the other side undergoes corona treatment to adapt to printing and dry lamination processes

These functional films are specially developed for packaging scenarios including fresh vegetables, mushrooms, fruits, pre-mixed salads, chilled meat, seafood, sandwiches and baked food. These categories are highly susceptible to surface fogging caused by high humidity, temperature fluctuations and cold chain transportation.

Manufactured via Bruckner production lines featuring stable winding technology and precise thickness control, our anti-fog BOPP films maintain stable high transparency across every production roll for reliable consistent performance.

BOPP Scratch Resistant Film – Technical Specifications
Properties Unit Typical Data Test Methods
Thickness μm 25 GB/T6672
Tensile Strength (MD) MPa 100 ASTM D882
Tensile Strength (TD) MPa 190 ASTM D882
Elongation at break (MD) % 165 ASTM D882
Elongation at break (TD) % 40 ASTM D882
Coefficient of friction (μk/μs) — 0.7 GB/T10006
Unit Weight g/cm² 19.8 ASTM D792
Gloss % 5 ASTM D2457
Haze % 95 ASTM D1003
Heat Shrinkage (MD) % 3 BMS TT 02
Heat Shrinkage (TD) % 1.5 BMS TT 02
Heat seal temperature range ℃ 115–140 ASTM F88
Surface tension (Scratch Free side) mN/m ≥38 GB/T8807
Surface tension (Glossy side) mN/m ≥38 GB/T8807
Note: Typical data for reference only. Testing environment: 23°C / 50% RH.

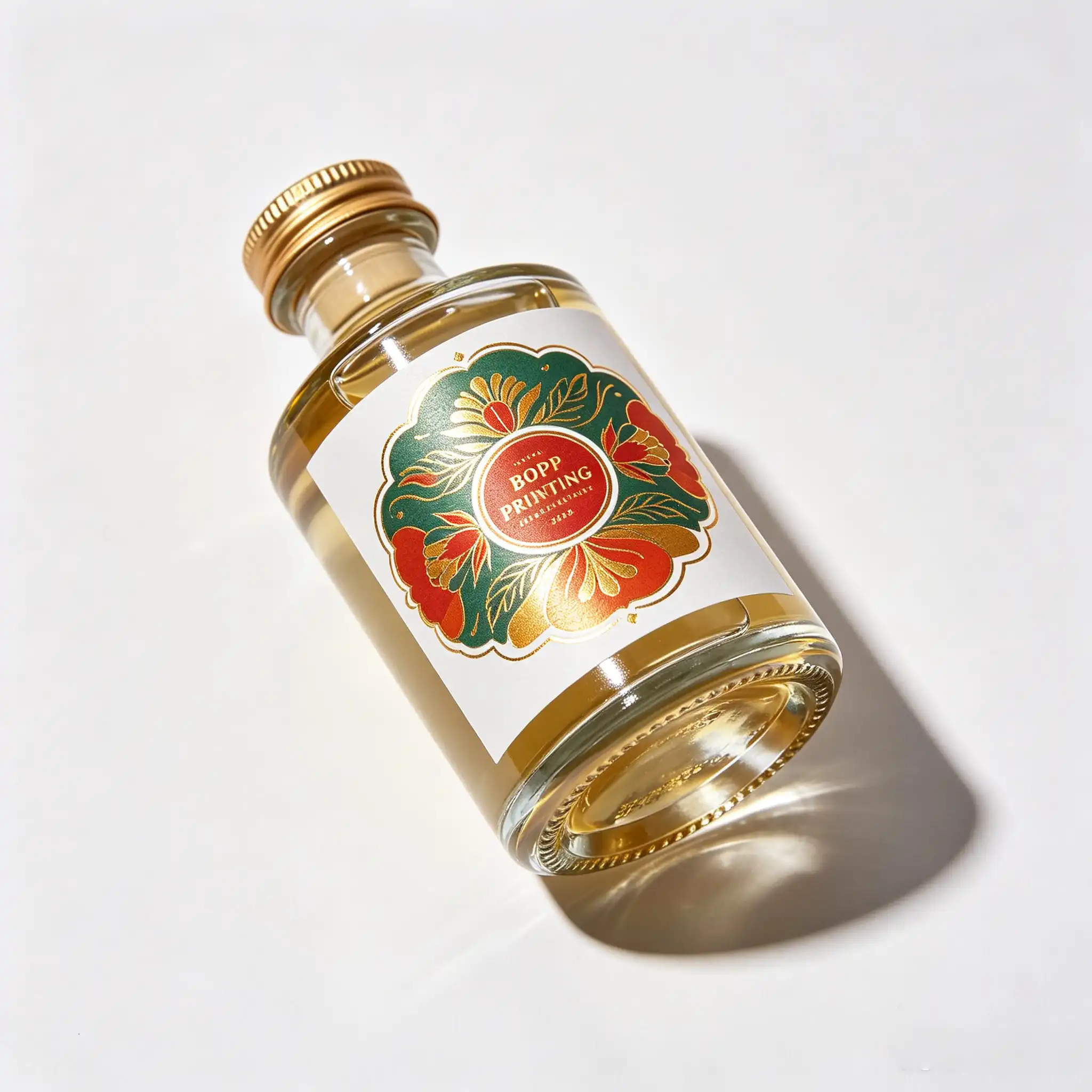

BOPP Printing Film

Our professional BOPP printing film is engineered as a dedicated printing layer for composite packaging structures. Compared with standard general-purpose BOPP films, this specialty grade is optimized for excellent ink adhesion, ultra-smooth surface and stable dimensional performance, perfectly suited to high-speed printing production.

Compatible with both solvent-based and water-based inks, our film works seamlessly with gravure, flexographic and digital printing lines. It is widely used for snack and candy packaging bags, frozen food packages, daily commodity pouches and premium self-adhesive labels.

Commonly adopted as the outer printing web in packaging structures, this BOPP printing film can be laminated with heat-sealable BOPP film, matte BOPP film, BOPET and other substrates to meet your customized requirements on packaging appearance and functional properties.

As a trustworthy global flexible packaging film supplier, we supply BOPP printing films with a wide range of thickness options. Customizable corona treatment levels, slip performance and COF parameters are available to fit your downstream converting processes perfectly.

Whether you are a printing manufacturer, packaging converter or brand owner, our professional technical team can recommend the most appropriate product specifications for you. We help you improve printing efficiency, cut material waste and achieve stable, consistent high-quality packaging production.

BOPP Film – Additional Technical Data
Property Description / Specification
Thickness range Typically 12–40 µm for most packaging and label applications
Surface treatment One-side or two-side corona treatment, tailor-made dyne level for strong ink adhesion and lamination bond
Finishes High gloss for premium shelf appeal, or lower-gloss finishes to pair with BOPP Matte Film or Soft Touch BOPP Film
Mechanical strength High tensile strength and tear resistance to run on high-speed printing and laminating lines with minimal breaks
Dimensional stability Controlled shrinkage and flatness to keep registration accurate during multi-color printing
Ink compatibility Suitable for solvent-based, water-based and UV inks (subject to ink supplier recommendation and press trials)
Width & roll configuration Customized web width, roll diameter and core size to match your printing and laminating equipment
Note: All data are for reference only. Actual performance may vary with processing conditions.

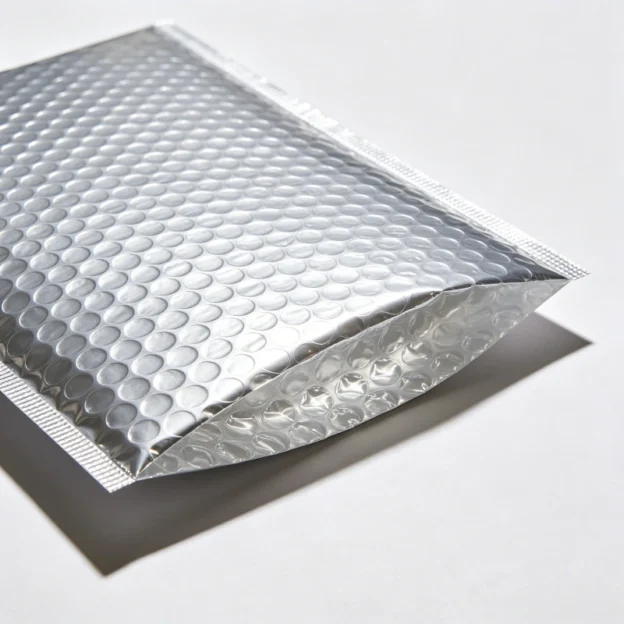

BOPP Pearlized Film

Our premium BOPP pearlized film is manufactured by coating top-tier BOPP base film with pearlescent pigments, creating visually attractive packaging material with excellent processability for all types of packaging equipment.

Boasting elegant pearlescent gloss and high reflectivity, this film greatly upgrades the texture and high-end visual effect of finished packages. It features stable mechanical properties and strong adaptability for printing, lamination and other post-processing procedures. With outstanding gas and moisture barrier performance, it effectively extends the shelf life of packaged goods.

Eco-friendly and non-toxic, our BOPP pearlized film complies with international safety standards, perfectly suitable for food, medical and hygiene packaging scenarios. It integrates exquisite appearance, reliable functionality and environmental advantages, making it an optimal solution for high-end packaging.

We provide single-sided and double-sided heat-sealable pearlized films with stable sealing capacity. This material is widely used in composite printing, general commodity packaging, frozen food such as ice cream and ice pops, candy, soap, as well as wrap-around labels for mineral water and soy milk. It can also replace paper for decorative applications.

As a professional BOPP pearlized film manufacturer based in China, we supply diverse specifications including white pearlescent BOPP film. Every roll undergoes strict quality inspection to fully meet your customized packaging demands.

BOPP Film – Technical Specifications
Properties Test Methods Unit Typical Data
Tensile Strength (MD) ASTM D882 N/mm² ≥120
Tensile Strength (TD) ASTM D882 N/mm² ≥240
Elongation at break (MD) ASTM D882 % ≤170
Elongation at break (TD) ASTM D882 % ≤70
Coefficient of friction ASTM D1894 — ≤0.6
Density ASTM D792 g/cm³ 0.76
Gloss ASTM D2457 % ≥260
Haze ASTM D1003 % ≤0.5
Heat Shrinkage (120℃/2min) MD ASTM D1204 % ≤4
Heat Shrinkage (120℃/2min) TD ASTM D1204 % ≤2.0
Surface tension (Corona Side) ASTM D2578 Dyne ≥38
Note: Typical data for reference only. Testing environment: 23°C / 50% RH.

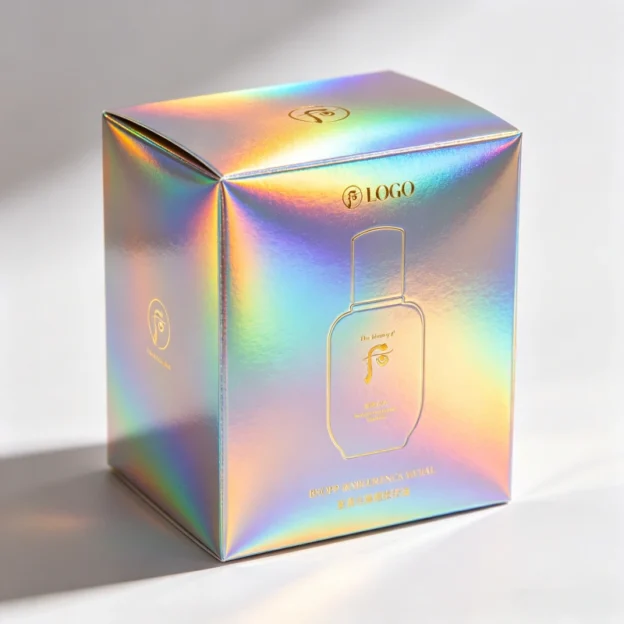

BOPP Holographic Film

Premium BOPP Holographic Film With Stunning Visual & Anti-counterfeiting Performance

Our BOPP holographic film is manufactured using advanced precision embossing technology, with delicate iridescent holographic textures crafted on high-grade biaxially oriented polypropylene substrates. Featuring brilliant rainbow luster and vivid dynamic visual effects under light irradiation, the film endows packaged goods with a distinctive high-end look, helping your products stand out prominently in fierce market competition and attract more consumer attention.

Equipped with sophisticated and hard-to-replicate holographic microstructures, our BOPP holographic film delivers stable, durable and reliable anti-counterfeiting capabilities. It effectively curbs illegal product counterfeiting behaviors, strictly protects brand authenticity, and safeguards brand reputation as well as consumer trust for long-term brand value growth.

Beyond its extraordinary visual presentation, the film boasts superior comprehensive barrier properties against oxygen, moisture and ultraviolet rays. It can perfectly isolate external adverse environmental factors, stabilize internal product quality, and greatly extend the shelf life of various products, including food, cosmetics, pharmaceuticals, tobacco and alcohol. It is an ideal packaging material for high-standard product preservation.

As a professional and experienced manufacturer focusing on holographic packaging materials, we support full-dimensional customized services to meet diverse market and brand demands. Our customizable solutions cover various base colors, exclusive holographic patterns, custom brand logos, personalized texts and bespoke artwork designs. We provide integrated one-stop packaging services from design to finished products, converting your unique packaging concepts into high-quality, eye-catching holographic packaging works that fit your brand positioning perfectly.

BOPP Film – Technical Specifications
Properties Test Methods Unit Typical Data
Mechanical Properties
Tensile Strength (MD) ASTM D882 N/mm² ≥140
Tensile Strength (TD) ASTM D882 N/mm² ≥280
Fracture Extension (MD) ASTM D882 % ≤168
Fracture Extension (TD) ASTM D882 % ≤60
Physical Properties
Coefficient of friction ASTM D1894 — ≤0.6
Density ASTM D792 g/cm³ 0.91
Gloss ASTM D2457 % ≥90
Haze ASTM D1003 % ≤2.0
Thermal Properties
Heat Shrinkage (120℃/2min) — MD ASTM D1204 % ≤3.5
Heat Shrinkage (120℃/2min) — TD ASTM D1204 % ≤1.5
Other Properties
Surface tension (Corona Side) ASTM D2578 Dyne ≥38
Transparency & Brightness — — Good transparency and bright
Note: Typical data are for reference only.  |
Testing environment: Standard laboratory conditions (23°C / 50% RH)

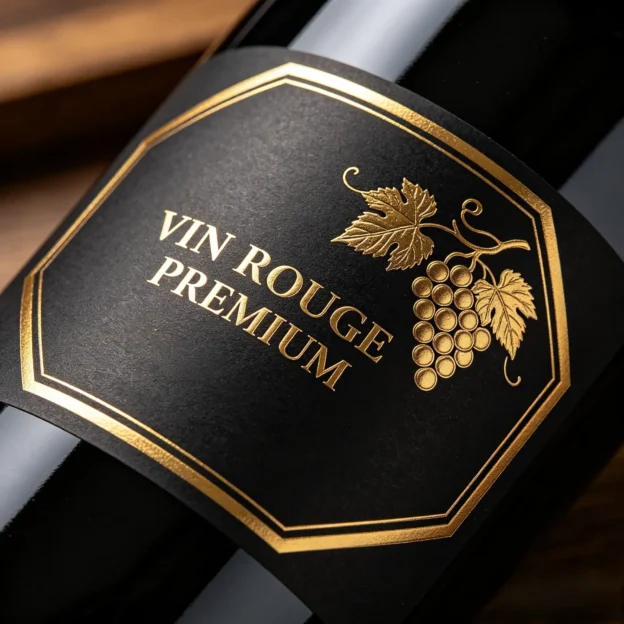

BOPP Matte Film

Our BOPP matte film (also referred to as matt BOPP or matte-finish polypropylene film) is a biaxially oriented film featuring a matte surface on one side and a corona-treated surface on the reverse. This dual-sided design delivers a sophisticated, non-reflective finish while ensuring outstanding receptivity to inks and adhesives.

Surface Aesthetics & Tactile Quality
The finely textured matte side imparts a subdued, paper-like elegance to packaging and printed materials. This low-gloss effect creates a premium, understated appearance that appeals to brands seeking a refined shelf presence.

Performance & Material Properties
Engineered with balanced mechanical strength, excellent printability, and effective moisture/oxygen barrier properties, this film performs reliably across diverse applications—from food and beverage wraps and cosmetic boxes to pharmaceutical leaflets, stationery items, and book covers.

Manufacturing & Service Commitment
As a direct film manufacturer, we offer more than just high-quality substrates. Our services include:

  • Free sample rolls for pre-production testing

  • Customized specifications (width, core diameter, thickness, winding tension) tailored to your converting lines

  • Technical support to optimize your printing and lamination processes

Choosing us means partnering with a dedicated supplier focused on consistent quality and responsive service—backed by years of expertise in the BOPP film industry.

BOPP Matte Film – Technical Specifications
No. Property Unit Typical Value Test Result Test Method
1 Width mm ±1.0 +0.1 GB/T6673-2001
2 Thickness µm 12/15/18 ±1.0 18.3 GB/T6672-2001
3 Tensile Strength (MD) MPa ≥120 128.0 GB/T1040.3-2006
Tensile Strength (TD) MPa ≥200 271.0
4 Elongation at Break (MD) % ≤180 133.0 GB/T1040.3-2006
Elongation at Break (TD) % ≤65 48.0
5 Modulus of Elasticity (MD) MPa ≥2200 2412.3 —
Modulus of Elasticity (TD) MPa — —
6 Hot-shrinkage Rate (MD) % ≤4.5 1.8 GB/T10003-2008
Hot-shrinkage Rate (TD) % ≤3.0 0.3
7 Coeff of Friction (Dynamic) A/A — ≤0.30 0.125 GB/T10006-2021
Coeff of Friction (Dynamic) C/C — — 0.139
8 Haze % ≤2.0 1.10 GB/T2410-2008
9 Gloss % ≥85 94.0 GB/T8807-1988
10 Heat Seal Strength (A/A) N/15mm ≥2.0 3.1 GB/T10003-2008
Heat Seal Strength (A/C) N/15mm ≥2.0 3.0
Heat Seal Strength (C/C) N/15mm ≥2.0 3.0
11 Water Vapour Transmission Rate g/(m²·24h·0.1mm) — — —
12 Abrasion Resistance % ≤1.0 0.8 YC/T 315
13 Outlook — Good Pass GB/T10003-2008
14 Value / Grade — Grade A Grade A —
Note: A side is smooth surface  |
Testing environment: Temperature 23°C  ·  Moisture 55%

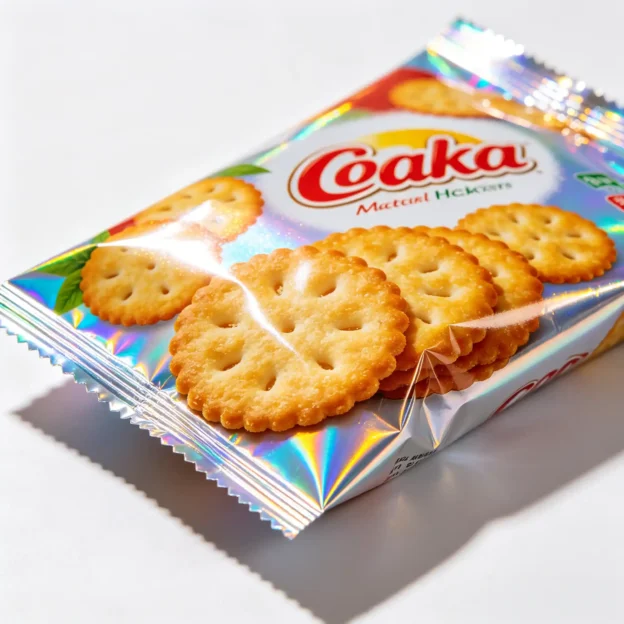

BOPP Gloss Film

Our BOPP gloss film is a highly transparent, high-gloss biaxially oriented polypropylene film, widely adopted as the outer web or printing substrate in flexible packaging constructions. The biaxial orientation process imparts an excellent combination of optical clarity, surface gloss, dimensional stability, and robust mechanical performance.

The film features a smooth surface with an effective corona treatment, ensuring strong anchorage for inks and adhesives across gravure, flexographic, and digital printing platforms. This versatility allows it to perform effectively either as a standalone mono-web for simple overwrap applications, or as a lamination layer in multi-material structures—such as BOPP gloss / CPP, BOPP gloss / PE, and BOPP gloss / metallized BOPP.

Typical end-use applications span a broad range, including flow-wrap packaging for snacks and confectionery, outer wrapping for tissue and cartons, label face stock, lamination for magazine covers and book jackets, as well as tape backing film. When combined with metallized, matte, heat-sealable, or high-barrier coatings, our gloss film offers packaging designers a flexible tool to balance aesthetics, barrier performance, cost efficiency, and recyclability in line with modern sustainability goals.

As a manufacturer based in China, we place strong emphasis on production consistency, precise thickness control, and tailored slitting services to meet diverse customer specifications. We are committed to supporting converters and brand owners with complimentary samples, comprehensive technical data sheets, and prompt export logistics via Qingdao Port—ensuring a smooth and reliable supply chain from sample request to bulk delivery.

BOPP Gloss Film – Technical Data Sheet
No. Property Unit Typical Value Test Result Test Method
1 Width mm ±1.0 +0.1 GB/T6673-2001
2 Thickness µm 12/15/18 ±1.0 18.3 GB/T6672-2001
3 Tensile Strength (MD) MPa ≥120 128.0 GB/T1040.3-2006
Tensile Strength (TD) MPa ≥200 271.0
4 Elongation at Break (MD) % ≤180 133.0 GB/T1040.3-2006
Elongation at Break (TD) % ≤65 48.0
5 Modulus of Elasticity (MD) MPa ≥2200 2412.3 —
Modulus of Elasticity (TD) MPa — —
6 Heat-shrinkage Rate (MD) % ≤4.5 1.8 GB/T10003-2008
Heat-shrinkage Rate (TD) % ≤3.0 0.3
7 Coeff of Friction (Dynamic) A/A — ≤0.30 0.125 GB/T10006-2021
Coeff of Friction (Dynamic) C/C — — 0.139
8 Haze % ≤2.0 1.10 GB/T2410-2008
9 Gloss % ≥85 94.0 GB/T8807-1988
10 Heat Seal Strength (A/A) N/15mm ≥2.0 3.1 GB/T10003-2008
Heat Seal Strength (A/C) N/15mm ≥2.0 3.0
Heat Seal Strength (C/C) N/15mm ≥2.0 3.0
11 Water Vapour Transmission Rate g/(㎡·24h·0.1mm) — — —
12 Abrasion Resistance % ≤1.0 0.8 YC/T 315
13 Outlook — Good Pass GB/T10003-2008
14 Value / Grade — Grade A Grade A —
Note: A side is smooth surface  |
Testing environment: Temperature 23°C  ·  Moisture 55%
